MOTOmed USA layson.l - In-bed Cycling Active and Passive Trainer
$13,295.00
Latest Technology Requiring Only Very Little Space
The MOTOmed layson.l is a versatile medical device that provides passive, motor-assisted and active training of the lower extremities for patients in intensive care units, critical care, early rehabilitation and dialysis.
Thanks to height adjustment and intuitive handling, the MOTOmed can be easily and effortlessly adapted to the individual needs of patients. With its freely rotatable castors and the help of the optionally available expandable chassis, the MOTOmed can be easily and flexibly moved to the patient's bed and positioned in a space-saving manner. The centrally operated 4-point ground fixation enables a stable stand. When training the lower extremities, the "TrainCare" with plastic-coated leg guides, available as an accessory and individually adjustable on both sides, ensures a secure hold of the legs and prevents overstretching or locking of the knee joints. The "knee bending adjustment" allows the bending and extension of the knee and hip joints to be precisely adjusted individually. Even during training, adjustments can be made.
Excellent Design And Intuitive Usability
The MOTOmed layson.l impresses with its unique user-friendly design. Orange-colored operating elements clearly show users where settings can be made. This means that the MOTOmed layson.l can be optimally adapted to the individual requirements of the user in a safe manner and in just a few steps. The option of therapy modes as well as pre-installed therapy programs enable effective training, which can be performed safely and independently thanks to the "MovementProtector" with adaptive "SpasmControl".
The large color touch display makes it easy to set programs and training parameters. During the training session, users receive information about the current training via various biofeedback displays, and at the end of the training session the evaluation is clearly displayed there. The handling of the 7'' color touch display is intuitive and easy to understand, so that training can be started quickly and without complications.
With the removable operating panel, users can follow their training success themselves and make settings independently.
The MOTOmed next generation models offer special added value: During training, digital photos from family and friends or memories of special moments can be virtually experienced with the MOTOmed slideshow. Looking at the pictures gives movement therapy an additional, emotional value.
Thanks to the modern hygiene concept, which enables optimal disinfection, the MOTOmed layson.l can be effectively and efficiently integrated into everyday clinical and nursing routine.
- Therapy programs
- Games and videos
- Slideshow
Standard Features:-
- Plastic-coated safety foot shells with disinfectable fastening straps and quick release system (pair, incl. pedal cranks)
- Plastic-coated handles with quick release system (pair)
- Gas spring support for height adjustment
- Selectable parallel chassis or expandable chassis with ground fixation
- Knee bending adjustment incl. adjustment wheel
- Colour touch display (7"), rotatable, inclinable*²
- Quick release system for foot shells and handles*¹
- Pedal radius: 7 cm
- Sturdy metal construction, high quality and stable
- Closed plastic body (PC/ABS), easy to clean and disinfect
- Easily movable with large castors (Ø 7.5 cm)
- Centrally operated 4-point ground fixation
- (Serial interface), USB interface
- Plastic-coated transport handle
- Patient remote control
- Color: white/chrome/black/orange
Improvement Of Rehabilitation And Quality Of Life Of Intensive Care Patients
Mobilization as early as possible is the basis for a successful rehabilitation process and in many cases leads to an earlier transfer from the intensive care unit and subsequent discharge from the hospital. Scientists are currently working on the development of standards and guidelines for early mobilization. In this context, the motor-driven MOTOmed Movement Therapy in supine position plays a major role.
With regular use, joint mobility can be maintained and blood circulation and metabolism can be activated. In addition, MOTOmed Movement Therapy represents a natural decubitus and thrombosis prophylaxis. Initial scientific findings also indicate earlier weaning from ventilation (weaning) through the use of MOTOmed Movement Therapy in supine position.
The use of a MOTOmed layson edition model enables a recumbent, possibly comatose person in the intensive care unit a safe form of passive mobilization. In addition, the „ServoCycling“ therapy aid can be used while the patient is awake to provide assistive training adapted to the patient‘s condition, even with minimal muscle strength. This leads to a considerable increase in motivation and consent to further rehabilitation.
The intuitive handling and the user-friendly operation via touch screen enables therapists and nursing staff to use the MOTOmed layson edition very easily.
Warranty
RECK MOTOmed products have a 1 year warranty. HealthCare International has you covered with timely support and service technicians across the nation.
Unit parallel chassis (Length):
55.9"- 61"
Unit parallel chassis (Width):
26.3"- 38.1"
Unit parallel chassis (Height):
51.5" - 65.4"
Unit Weight Expandable chassis:
98 kg / 216 lbs
Unit Weight Parallel chassis:
92 kg / 203 lbs
Height adjustment (maximum bed height):
105 cm / 41.3"
Chassis height (ground clearance bed):
10 cm / 4"
Maximum User Weight:
135 kg / 297 lbs
Screen Size:
7“ / 18 cm

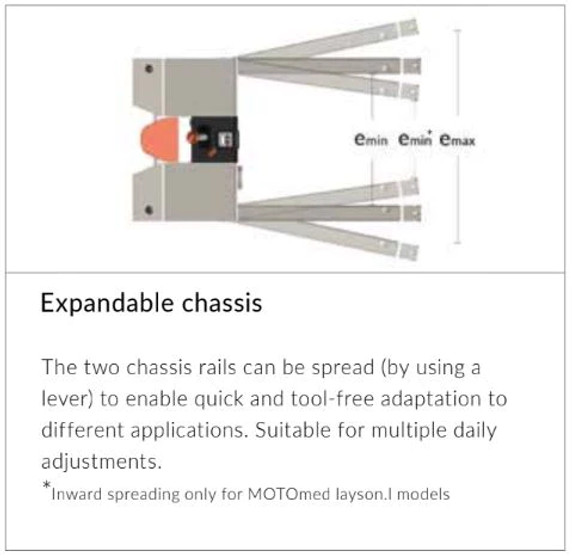

Expandable chassis (spread width of guide tracks) (Emin–Emax):
55–93 cm / 21.7" - 36.6"
Parallel chassis (distance between guide tracks) (Pmin–Pmax):
55–85 cm / 21.7" - 33.4"
Power Supply:
100-240 V~ / max. 120 VA
Power Frequency:
47-63 Hz
Material:
All-All Metal Construction
